Methods of the data-type GRIDMAN_INDEX, see gridman.f. More...

Functions/Subroutines
subroutine	gridman_index_allocate (INDEX, NINDEX, NELEMENTS, IERR)
	Allocate index object. More...

subroutine	gridman_index_deallocate (INDEX, IERR)
	Allocate index object. More...

subroutine	gridman_index_check (INDEX, RES, IERR)
	Check index object. More...

subroutine	gridman_index_write (INDEX, IOUT, IERR)
	Save index object in a file. More...

subroutine	gridman_index_read (INDEX, IIN, IERR)
	Read index object from file. More...

subroutine	gridman_index_compare (INDEX1, INDEX2, RES, IERR)
	Compare two index objects. More...

subroutine	gridman_index_copy (INDEX2, INDEX1, IERR)
	Create a copy of the index object. More...

logical function	gridman_index_repeated_elements (INDEX, IERR)
	Check if the same element index appear more than once. More...

subroutine	gridman_index_elmap (ELMAP, NMIN, NMAX, INDEX, IERR)
	Create an aray which maps elements into the table of indices. More...

subroutine	gridman_index_create121 (INDEX, N, IERR)
	Create index table for "one-to-one" mapping. More...

subroutine	gridman_index_transform (INDEX2, INDEX1, IMAP12, N12, IERR)
	Transform indices of elements - IND(0,:) More...

subroutine	gridman_index_merge (INDEX, INDEX1, INDEX2, IERR)
	Merge INDEX2 into INDEX1. More...

Detailed Description

Methods of the data-type GRIDMAN_INDEX, see gridman.f.

Definition in file index.f.

Function/Subroutine Documentation

subroutine gridman_index_allocate	(	type(gridman_index)	INDEX,
		integer, intent(in)	NINDEX,
		integer(gridman_sp), intent(in)	NELEMENTS,
		integer, intent(out)	IERR
	)

Allocate index object.

WARNING: INDEX will be overwritten if alreay exists!

Parameters

	index	Resulting index object
[in]	nindex	Number of indices
[in]	nelements	Number of elements
[out]	ierr	Error code

Definition at line 28 of file index.f.

References gridman_index_deallocate(), and gridman::gridman_sp.

Referenced by gridman_addsurf2grid_2d(), gridman_addsurf2grid_3d(), gridman_carre2grid(), gridman_grid2d_cut(), gridman_grid2d_triang(), gridman_grid_eliminate_cells(), gridman_grid_eliminate_edges(), gridman_index_copy(), gridman_index_create121(), gridman_index_merge(), gridman_index_read(), gridman_index_transform(), gridman_template2grid(), and gridman_tria2grid().

Here is the call graph for this function:

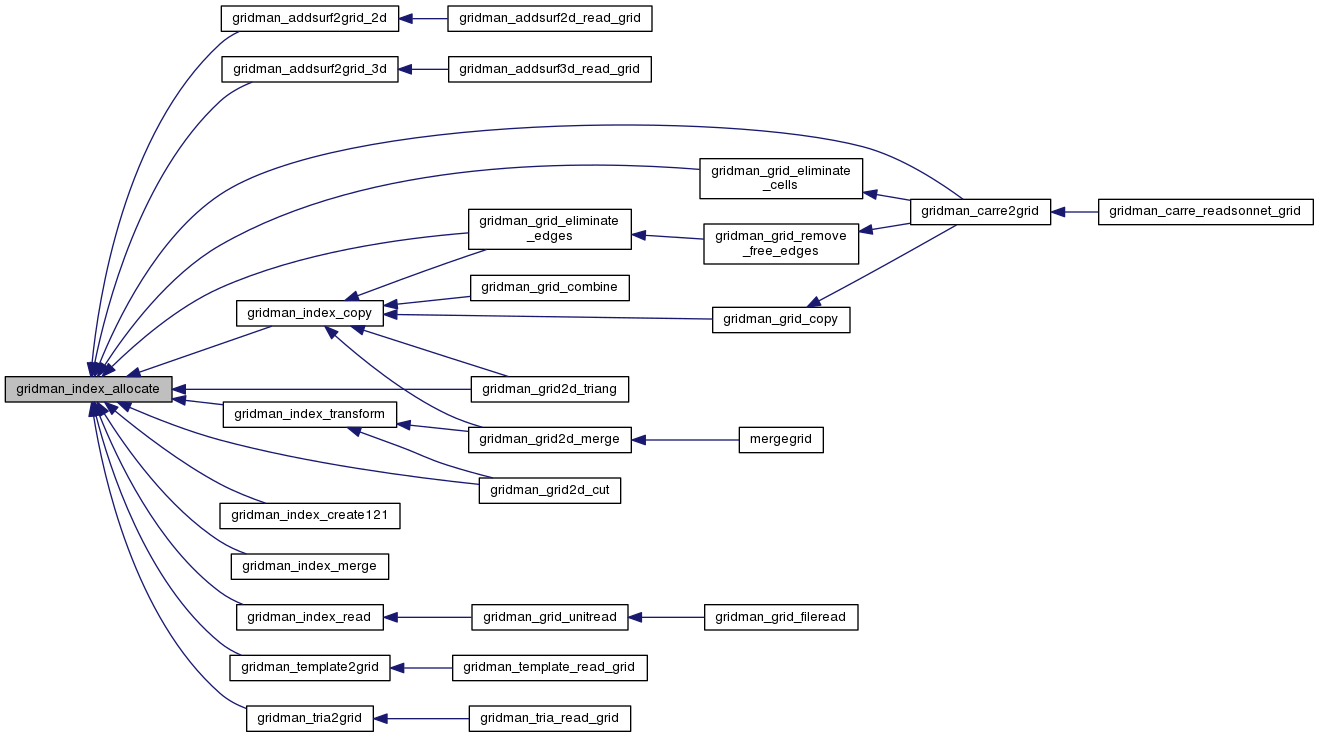

Here is the caller graph for this function:

subroutine gridman_index_deallocate	(	type(gridman_index)	INDEX,
		integer, intent(out)	IERR
	)

Allocate index object.

Parameters

	index	Index object
[out]	ierr	Error code

Definition at line 98 of file index.f.

References gridman::gridman_dbg, and gridman::gridman_unit.

Referenced by gridman_grid_deallocate(), gridman_grid_eliminate_edges(), gridman_index_allocate(), gridman_index_merge(), and gridman_tria2grid().

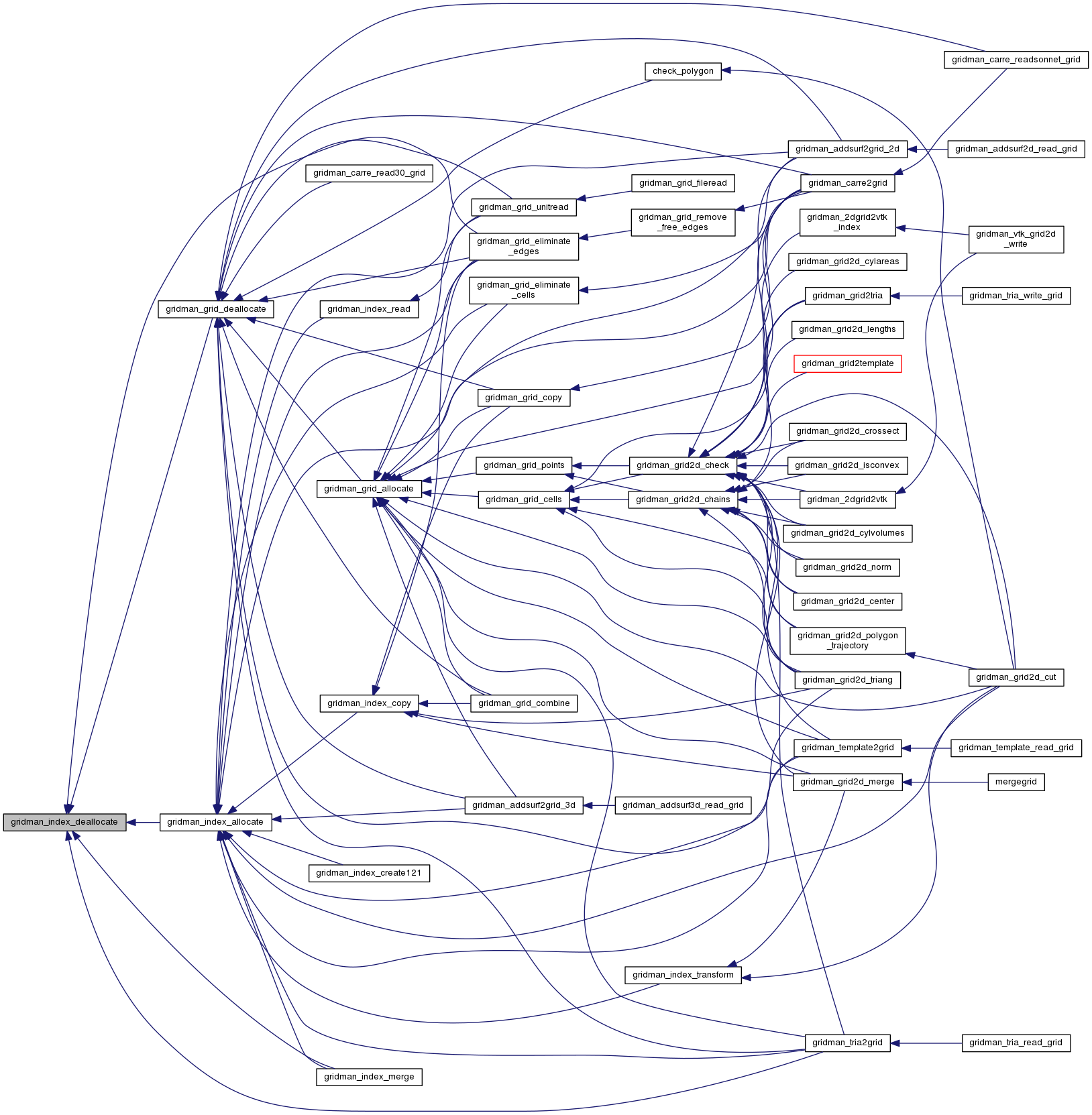

Here is the caller graph for this function:

subroutine gridman_index_check	(	type(gridman_index)	INDEX,
		integer, intent(out)	RES,
		integer, intent(out)	IERR
	)

Check index object.

RES=0: the index is correct
RES=1: index is not allocated
RES=2: dimensions are incorrect
RES=3: low array bounds are incorrect
RES=4: upper array bounds are incorrect
RES=5: allocation of COLUMNS is incorrect

Parameters

	index	Index object to be checked
[out]	res	Code of result
[out]	ierr	Error code

Definition at line 149 of file index.f.

References gridman::gridman_sp.

Referenced by gridman_grid_check(), gridman_index_compare(), gridman_index_copy(), gridman_index_create121(), gridman_index_elmap(), gridman_index_merge(), gridman_index_transform(), and gridman_index_write().

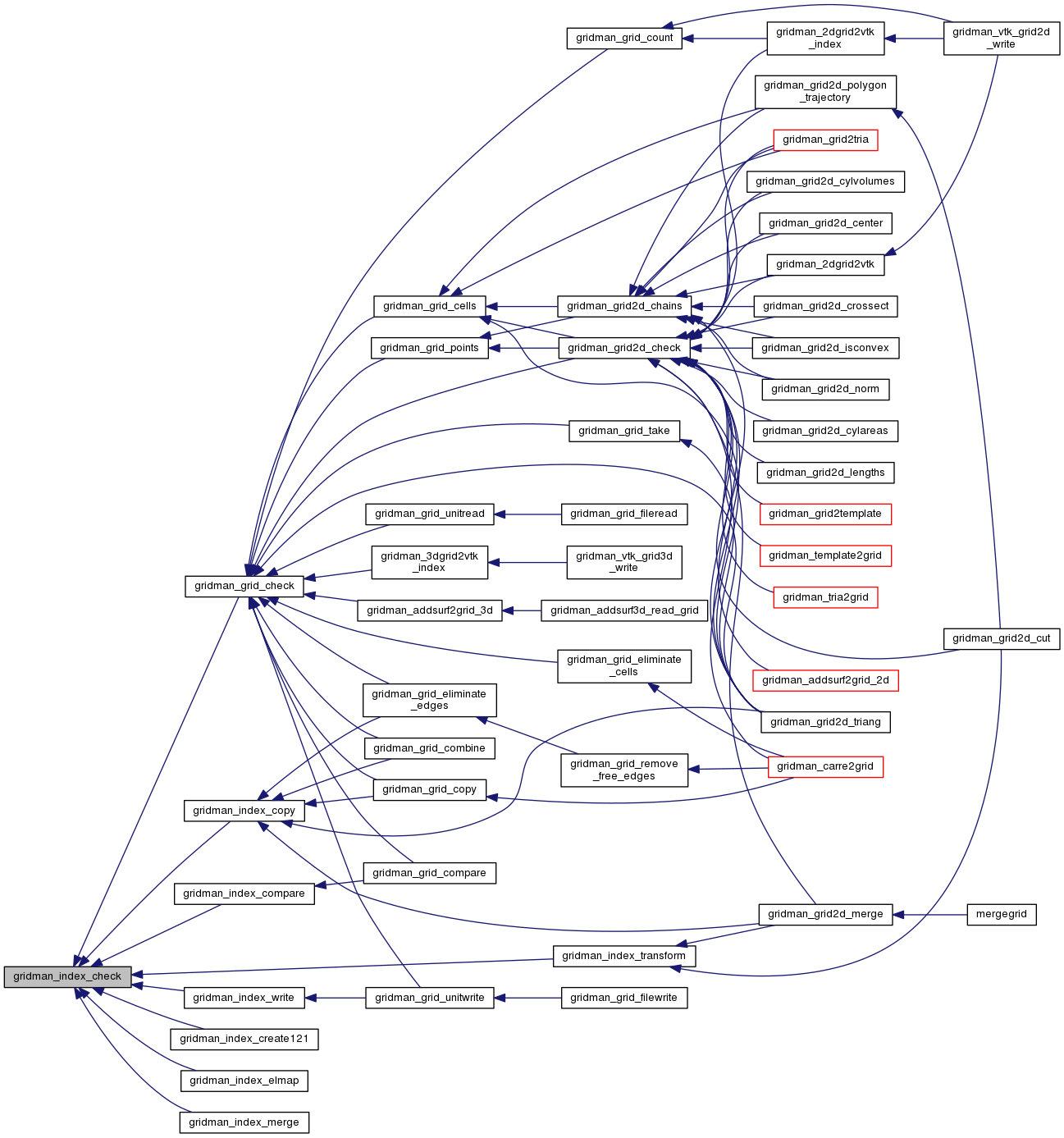

Here is the caller graph for this function:

subroutine gridman_index_write	(	type(gridman_index)	INDEX,
		integer, intent(in)	IOUT,
		integer, intent(out)	IERR
	)

Save index object in a file.

Parameters

	index	Index object to be saved
[in]	iout	Index of the output unit
[out]	ierr	Error code

Definition at line 234 of file index.f.

References gridman_index_check(), gridman::gridman_length, and gridman::gridman_sp.

Referenced by gridman_grid_unitwrite().

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_index_read	(	type(gridman_index)	INDEX,
		integer, intent(in)	IIN,
		integer, intent(out)	IERR
	)

Read index object from file.

Parameters

	index	Resulting index object
[in]	iin	Index of the output unit
[out]	ierr	Error code

Definition at line 327 of file index.f.

References gridman_index_allocate(), gridman::gridman_length, and gridman::gridman_sp.

Referenced by gridman_grid_unitread().

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_index_compare	(	type(gridman_index)	INDEX1,
		type(gridman_index)	INDEX2,
		integer, intent(out)	RES,
		integer, intent(out)	IERR
	)

Compare two index objects.

RES=0: two objects are equivalent
RES=1: different dimensions
RES=2: different elements
RES=3: different indices
RES=4: different descriptions
RES=5: different description of columns

Parameters

	index1	1st index object
	index2	2nd index object
[out]	res	Code of result
[out]	ierr	Error code

Definition at line 423 of file index.f.

References gridman_index_check(), and gridman::gridman_sp.

Referenced by gridman_grid_compare().

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_index_copy	(	type(gridman_index)	INDEX2,
		type(gridman_index)	INDEX1,
		integer, intent(out)	IERR
	)

Create a copy of the index object.

WARNING: INDEX2 will be overwritten if already exists!

Parameters

	index1	Original index
	index2	Copy to be created
[out]	ierr	Error code

Definition at line 538 of file index.f.

References gridman_index_allocate(), gridman_index_check(), and gridman::gridman_unit.

Referenced by gridman_grid2d_merge(), gridman_grid2d_triang(), gridman_grid_combine(), gridman_grid_copy(), and gridman_grid_eliminate_edges().

Here is the call graph for this function:

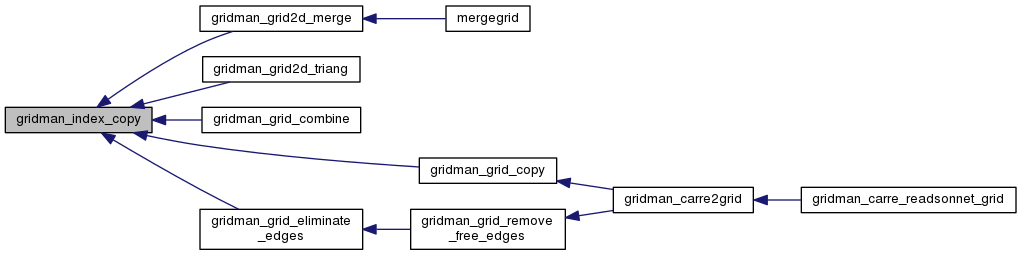

Here is the caller graph for this function:

logical function gridman_index_repeated_elements	(	type(gridman_index)	INDEX,
		integer, intent(out)	IERR
	)

Check if the same element index appear more than once.

Return .TRUE. if same element index appears more than once, and .FALSE. otherwise

Parameters

	index	Resulting index object
[out]	ierr	Error code

Definition at line 586 of file index.f.

References gridman::gridman_sp.

Referenced by gridman_index_elmap().

Here is the caller graph for this function:

subroutine gridman_index_elmap	(	integer(gridman_sp), dimension(:), allocatable	ELMAP,
		integer(gridman_sp), intent(out)	NMIN,
		integer(gridman_sp), intent(out)	NMAX,
		type(gridman_index)	INDEX,
		integer, intent(out)	IERR
	)

Create an aray which maps elements into the table of indices.

Parameters

elmap Mapping array, ELMAP(NMAX:NMIN)

ELMAP(I) is the position of element I in INDEXES: that is, indices of this element can be read as I (INDEXES(1:,ELMAP(I)). If ELMAP(I)<1 then index for element I is not defined

WRNING: ELMAP will be re-allocated if already exists

Parameters

[out]	nmin	Low boundary of ELMAP
[out]	nmax	Upper boundary of ELMAP
	index	Index object
[out]	ierr	Error code

Definition at line 643 of file index.f.

References gridman_index_check(), gridman_index_repeated_elements(), and gridman::gridman_sp.

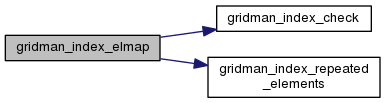

Here is the call graph for this function:

subroutine gridman_index_create121	(	type(gridman_index)	INDEX,
		integer(gridman_sp), intent(in)	N,
		integer, intent(out)	IERR
	)

Create index table for "one-to-one" mapping.

WARNING: INDEX is re-allocated if already exists

Parameters

	index	Resulting index object
[in]	n	Number of elements in the resulting index
[out]	ierr	Error code

Definition at line 733 of file index.f.

References gridman_index_allocate(), gridman_index_check(), gridman::gridman_sp, and gridman::gridman_unit.

Here is the call graph for this function:

subroutine gridman_index_transform	(	type(gridman_index)	INDEX2,
		type(gridman_index)	INDEX1,
		integer(gridman_sp), dimension(2,n12), intent(in)	IMAP12,
		integer(gridman_sp), intent(in)	N12,
		integer, intent(out)	IERR
	)

Transform indices of elements - IND(0,:)

In IND(0,:) indices IMAP12(1,:) are converted into IMAP12(2,:). If IND(0,:) is not found in IMAP12(1,:), then the line is not taken into the transformed index.

Parameters

	index2	Transformed index
	index1	Original index
[in]	imap12	Transformation table: IMAP12(1,:) -> IMAP12(2,:)
[in]	n12	Length of the transformation table
[out]	ierr	Error code

Definition at line 788 of file index.f.

References gridman_index_allocate(), gridman_index_check(), gridman::gridman_sp, and gridman::gridman_unit.

Referenced by gridman_grid2d_cut(), and gridman_grid2d_merge().

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_index_merge	(	type(gridman_index)	INDEX,
		type(gridman_index)	INDEX1,
		type(gridman_index)	INDEX2,
		integer, intent(out)	IERR
	)

Merge INDEX2 into INDEX1.

"Merging" means that elements of INDEX1 are taken without changes. Elements of INDEX2 which do not yet appear in INDEX1 added. Only indexes with equal number of columns (NINDEX) can be merged

WARNING: INDEX will be overwritten if alreay exists!

Parameters

	index	Resulting index object
	index1	Index object which stay conserved
	index2	Index object which is merged into INDEX1
[out]	ierr	Error code

Definition at line 880 of file index.f.

References gridman_index_allocate(), gridman_index_check(), gridman_index_deallocate(), gridman::gridman_sp, and gridman::gridman_unit.

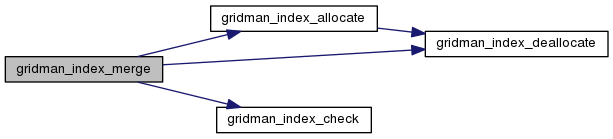

Here is the call graph for this function:
