cut.f File Reference

Select part of 2D grid cut by polygon. More...

Go to the source code of this file.

Functions/Subroutines
subroutine	gridman_grid2d_cut (CUTGRID, GRID, XP, YP, NP, LEX, IERR)
	Select part of a 2D grid cut by polygon. More...
subroutine	check_polygon (XP, YP, NP, IERR)
subroutine	gridman_grid2d_polygon_trajectory (NPOL, NPEDGE, ICELL_POL, IEDGE_POL, X_POL, Y_POL, INDVERT, INDSEG, XP, YP, NP, GRID, IERR)
subroutine	find_closest_edge (IEDGE_OUT, X_OUT, Y_OUT, X1, Y1, X2, Y2)
subroutine	find_closest_boundary (IEDGE_OUT, X_OUT, Y_OUT, IEDGE0, X1, Y1, X2, Y2)

Detailed Description

Select part of 2D grid cut by polygon.

Definition in file cut.f.

Function/Subroutine Documentation

subroutine gridman_grid2d_cut	(	type(gridman_grid)	CUTGRID,
		type(gridman_grid)	GRID,
		real(gridman_dp), dimension(np), intent(in)	XP,
		real(gridman_dp), dimension(np), intent(in)	YP,
		integer(gridman_sp), intent(in)	NP,
		logical, intent(in)	LEX,
		integer, intent(out)	IERR
	)

Select part of a 2D grid cut by polygon.

Take cells which lie inside or outside of a closed polygon.

Current implementation cannot handle the case where polygon edges intersect the grid nodes, or grid edges intersect the polygon vertices

Normally those conditions, as well as the codition that the polygon has no self intersections, are not checked because it may require too long time. The checks are enforced when GRIDMAN_CHECK=.TRUE.

If polygon segments are added to the grid, then an edge index with indexes of the segments is added

Parameters

	cutgrid	Resulting grid with eliminated and cut cells
	grid	Initial grid
[in]	np	Number of points in the polygon
[in]	xp	X-coordinates of the polygon vertices, in METER First and last points must be same - closed polygon
[in]	yp	Y-coordinates of the polygon vertices, in METER First and last points must be same - closed polygon
[in]	lex	Defines if points inside the polygon are included or excluded If .FALSE. then points are included If .TRUE. then points are excluded
[out]	ierr	Error code

Definition at line 38 of file cut.f.

References check_polygon(), gridman::gridman_dp, gridman_grid2d_check(), gridman_grid2d_polygon_trajectory(), gridman_grid_allocate(), gridman_index_allocate(), gridman_index_transform(), gridman_point_in_polygon(), gridman::gridman_sp, and gridman::gridman_unit.

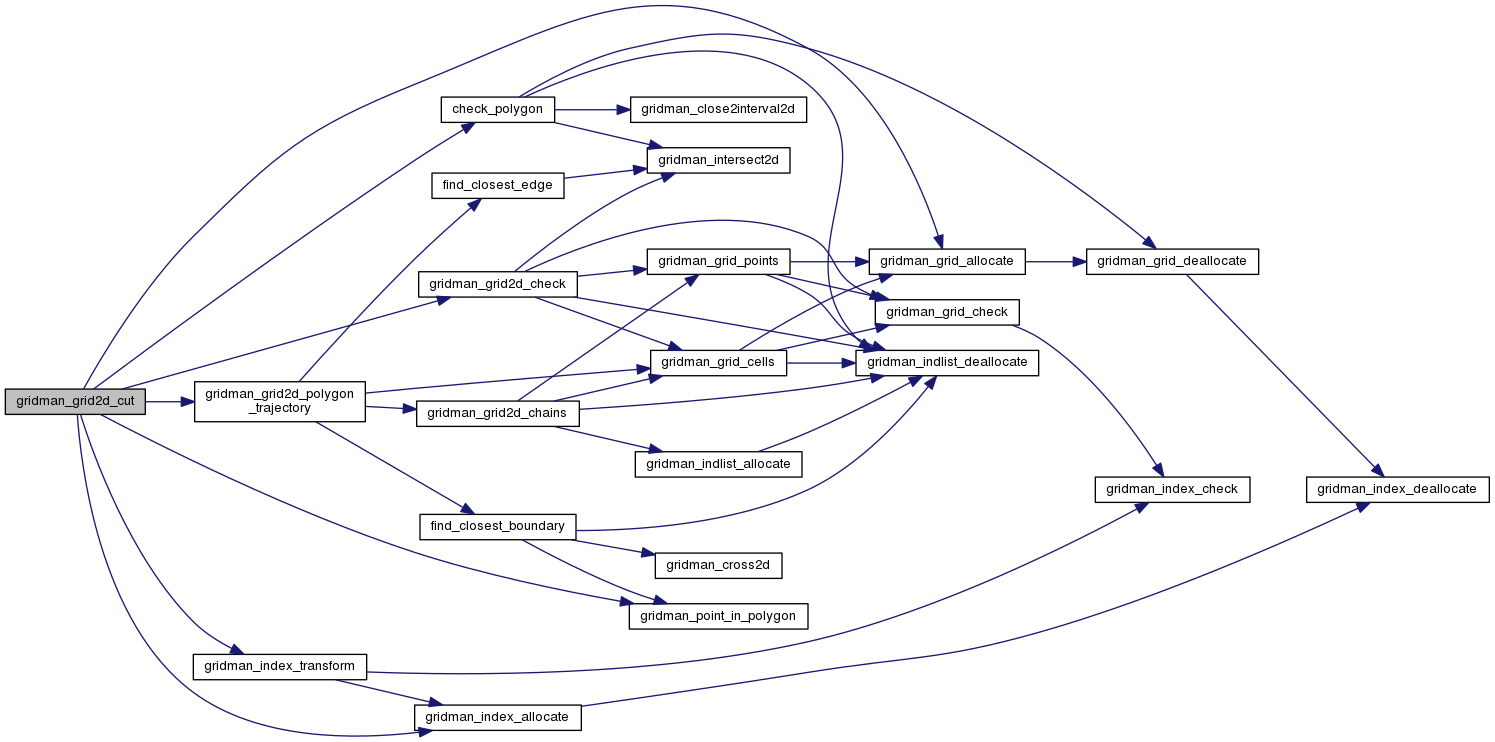

Here is the call graph for this function:

subroutine gridman_grid2d_cut::check_polygon	(	real(gridman_dp), dimension(np), intent(in)	XP,
		real(gridman_dp), dimension(np), intent(in)	YP,
		integer(gridman_sp), intent(in)	NP,
		integer, intent(out)	IERR
	)

Todo:

More efficient algorithm should be invented to check for nodes on segments and vertices on edges

Definition at line 796 of file cut.f.

References gridman_close2interval2d(), gridman_grid_deallocate(), gridman_indlist_deallocate(), gridman_intersect2d(), and gridman::gridman_unit.

Referenced by gridman_grid2d_cut().

Here is the call graph for this function:

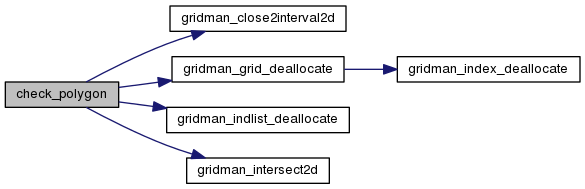

Here is the caller graph for this function:

subroutine gridman_grid2d_polygon_trajectory	(	integer(gridman_sp), intent(out)	NPOL,
		integer(gridman_sp), dimension(grid%nedges), intent(out)	NPEDGE,
		integer(gridman_sp), dimension(:), allocatable	ICELL_POL,
		integer(gridman_sp), dimension(:), allocatable	IEDGE_POL,
		real(gridman_dp), dimension(:), allocatable	X_POL,
		real(gridman_dp), dimension(:), allocatable	Y_POL,
		integer(gridman_sp), dimension(np), intent(out)	INDVERT,
		integer(gridman_sp), dimension(:), allocatable	INDSEG,
		real(gridman_dp), dimension(np)	XP,
		real(gridman_dp), dimension(np)	YP,
		integer(gridman_sp), intent(in)	NP,
		type(gridman_grid)	GRID,
		integer, intent(out)	IERR
	)

Parameters

IEDGE_POL

0 IF INSIDE THE CELL

Definition at line 1002 of file cut.f.

References find_closest_boundary(), find_closest_edge(), gridman::gridman_dp, gridman_grid2d_chains(), gridman_grid_cells(), gridman::gridman_sp, and gridman::gridman_unit.

Referenced by gridman_grid2d_cut().

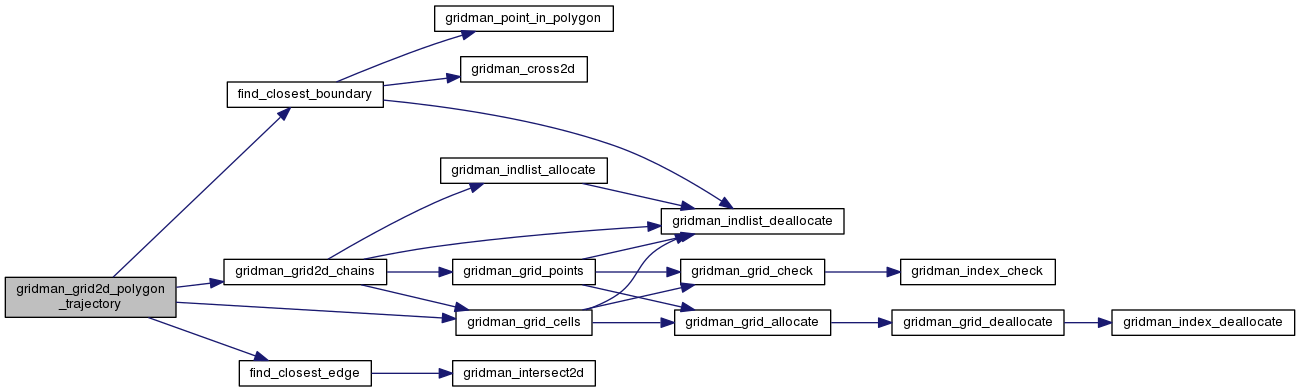

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_grid2d_polygon_trajectory::find_closest_edge	(	integer(gridman_sp), intent(out)	IEDGE_OUT,
		real(gridman_dp), intent(out)	X_OUT,
		real(gridman_dp), intent(out)	Y_OUT,
		real(gridman_dp), intent(in)	X1,
		real(gridman_dp), intent(in)	Y1,
		real(gridman_dp), intent(in)	X2,
		real(gridman_dp), intent(in)	Y2
	)

Parameters

[out]

iedge_out

0 IF NO EDGE IS INTERSECTED

Definition at line 1351 of file cut.f.

References gridman_intersect2d().

Referenced by gridman_grid2d_polygon_trajectory().

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_grid2d_polygon_trajectory::find_closest_boundary	(	integer(gridman_sp), intent(out)	IEDGE_OUT,
		real(gridman_dp), intent(out)	X_OUT,
		real(gridman_dp), intent(out)	Y_OUT,
		integer(gridman_sp), intent(in)	IEDGE0,
		real(gridman_dp), intent(in)	X1,
		real(gridman_dp), intent(in)	Y1,
		real(gridman_dp), intent(in)	X2,
		real(gridman_dp), intent(in)	Y2
	)

Parameters

[out]

iedge_out

0 IF NO EDGE IS INTERSECTED

Definition at line 1393 of file cut.f.

References gridman_cross2d(), gridman_indlist_deallocate(), gridman_point_in_polygon(), and gridman::gridman_unit.

Referenced by gridman_grid2d_polygon_trajectory().

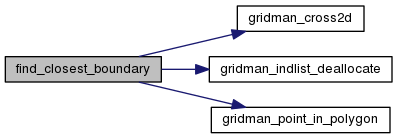

Here is the call graph for this function:
