Functions/Subroutines
subroutine, public	esputr1993_init (constantsFile, err)
	Initialization of the 1993-model. More...

logical function, public	esputr1993_if_initialized ()
	Return .true. if module esputr1993 is initialized. More...

subroutine, public	esputr1993_check (res, err)
	Check integrity and validity of data in the module. More...

subroutine, public	esputr1993_deallocate (err)
	Deallocate dynamic arrays used by the module ESPUTR1993. More...

integer function, public	esputr1993_getprojectileid (proj, err)
	Return ID of the projectile for the 1993-model. More...

integer function, public	esputr1993_gettargetid (targ, err)
	Return ID of the target for the 1993-model. More...

real(esputr_dp) function, public	esputr1993_yn (E0, proj_id, targ_id, err)
	Calculate sputtering yield for normal incidence with 1993-model for a given incident energy and target-projectile combination. More...

real(esputr_dp) function, public	esputr1993_yth (theta, err)
	Angular dependence of sputtering yield in 1993-model for given incident angle. More...

real(esputr_dp) function, public	esputr1993_eth (proj_id, targ_id, err)
	Return threshold energy for the given projectile-target combination. More...

subroutine, public	esputr1993_availablecombinations (combinations, err)
	Return the list of available projectile-target combinations. More...

Variables
integer, parameter, public	esputr1993_first_col_width = 11
	Width of the first column in the input file. More...

integer, save, private	nheaderlines
	Number of comment lines in the beginning of the input file All lines including the first line which starts with '=' are considered to be comment lines. If there is no line starting with '=', no line is treated as comment. More...

integer, parameter, private	col_width = 9
	Width of the columns in the input file. More...

integer, parameter, private	lines_per_target = 6
	Number of lines for each target in in the input file (excluding blank lines) More...

integer, parameter, private	nconstants = 3
	Number of parameters read from the input file for one target/projectile combination. More...

integer, save, private	ntargets
	Number of loaded targets. More...

integer, save, private	nprojectiles
	Number of loaded projectiles. More...

real(esputr_dp), dimension(:,:,:), allocatable, save, private	fitvalues
	Array with parameters of fitting formula for normal incidence for 1993-model. More...

character(esputr1993_first_col_width), dimension(:), allocatable, save, private	targets_names
	Array of strings with the names of targets. More...

character(esputr1993_first_col_width), dimension(:), allocatable, save, private	projectiles_names
	Array of strings with the names of projectiles. More...

Function/Subroutine Documentation

subroutine, public esputr1993::esputr1993_init	(	character(*), intent(in)	constantsFile,
		integer, intent(out)	err
	)

Initialization of the 1993-model.

This subroutine allocates arrays and reads data from the input file in EIRENE SPUTER format

Parameters

[in]	constantsfile	Name of the input file
[out]	err	Error code

Definition at line 82 of file esputr1993.f90.

References col_width, esputr1993_check(), esputr1993_first_col_width, esputr::esputr_unit, fitvalues, lines_per_target, nconstants, nheaderlines, nprojectiles, ntargets, esputr::numberoflines(), projectiles_names, and targets_names.

Referenced by esputr1993_init_wrapper(), esputr1993_test::esputr1993_test_compare(), esputr1993_test::esputr1993_test_double_init(), esputr1993_test::esputr1993_test_eth(), esputr1993_test::esputr1993_test_initialized(), esputr1993_test::esputr1993_test_th(), esputr1993_test::esputr1993_test_unknown_elements(), esputr1993_test::esputr1993_test_wrong_angle(), esputr1993_test::esputr1993_test_wrong_file(), esputr1993_test::esputr1993_test_wrong_ids(), initesputr(), and mexfunction().

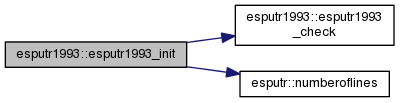

Here is the call graph for this function:

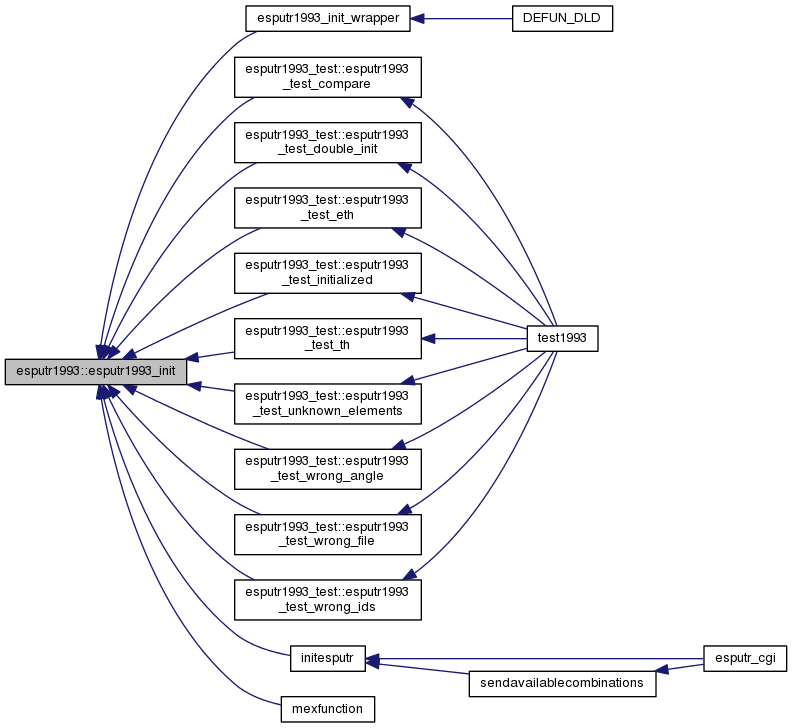

Here is the caller graph for this function:

logical function, public esputr1993::esputr1993_if_initialized ( )

Return .true. if module esputr1993 is initialized.

Definition at line 259 of file esputr1993.f90.

References fitvalues.

Referenced by esputr1993_test::esputr1993_test_initialized().

Here is the caller graph for this function:

subroutine, public esputr1993::esputr1993_check	(	integer, intent(out)	res,
		integer, intent(out)	err
	)

Check integrity and validity of data in the module.

Parameters

[out] res Code of the result

0: the data are valid
1: some or all arrays are not allocated
2: inconsistent array size
3: E_tf <= 0
4: E_th <= 0
5: Q <= 0

Parameters

[out] err Error code

Definition at line 264 of file esputr1993.f90.

References esputr::esputr_unit, fitvalues, nprojectiles, ntargets, projectiles_names, and targets_names.

Referenced by esputr1993_init().

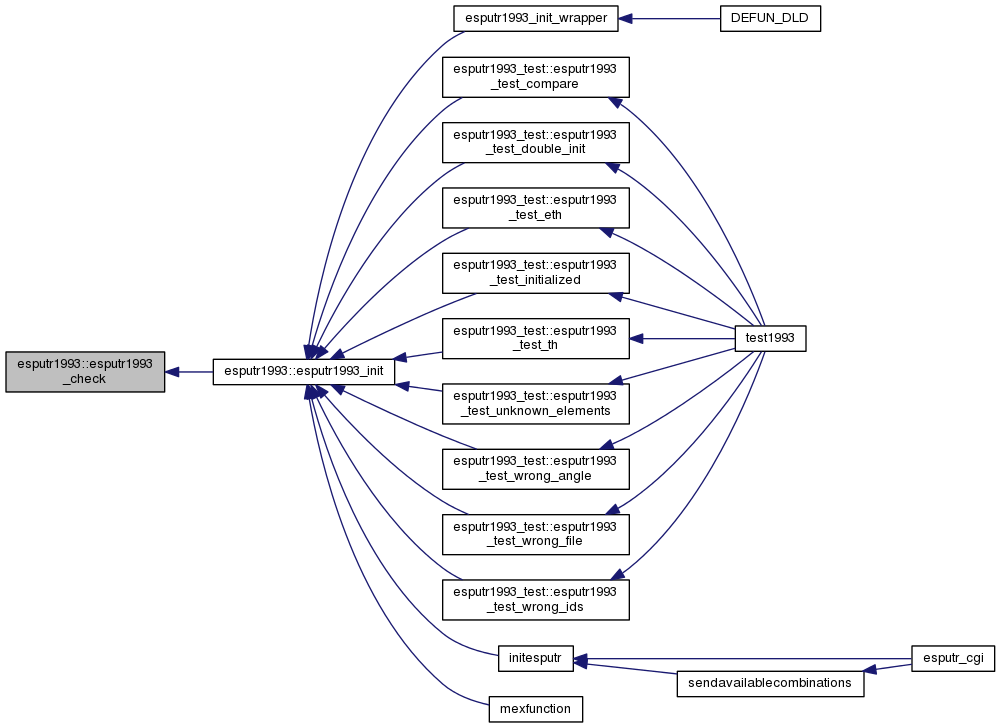

Here is the caller graph for this function:

subroutine, public esputr1993::esputr1993_deallocate ( integer, intent(out) err )

Deallocate dynamic arrays used by the module ESPUTR1993.

Parameters

[out] err Error code

Definition at line 329 of file esputr1993.f90.

References esputr::esputr_unit, fitvalues, projectiles_names, and targets_names.

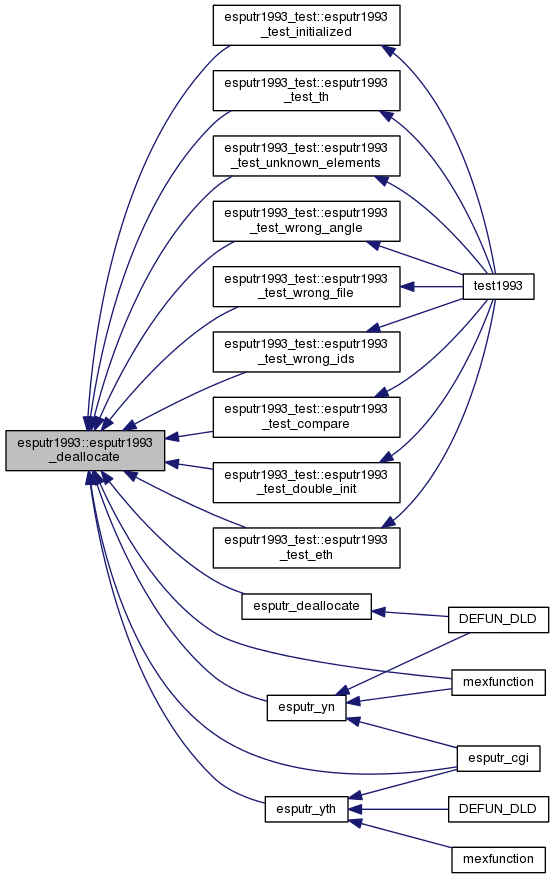

Here is the caller graph for this function:

integer function, public esputr1993::esputr1993_getprojectileid	(	character(*), intent(in)	proj,
		integer, intent(out)	err
	)

Return ID of the projectile for the 1993-model.

The ID index is to be used in function esputr1993_yn

Parameters

[in]	proj	String with the name of projectile
[out]	err	Error code

101 : requested projectile is not found

Definition at line 352 of file esputr1993.f90.

References esputr::esputr_unit, and projectiles_names.

Referenced by esputr1993_test::esputr1993_test_call_uninitialized(), esputr1993_test::esputr1993_test_compare(), esputr1993_test::esputr1993_test_eth(), esputr1993_test::esputr1993_test_unknown_elements(), esputr_yn(), and writejsonarray().

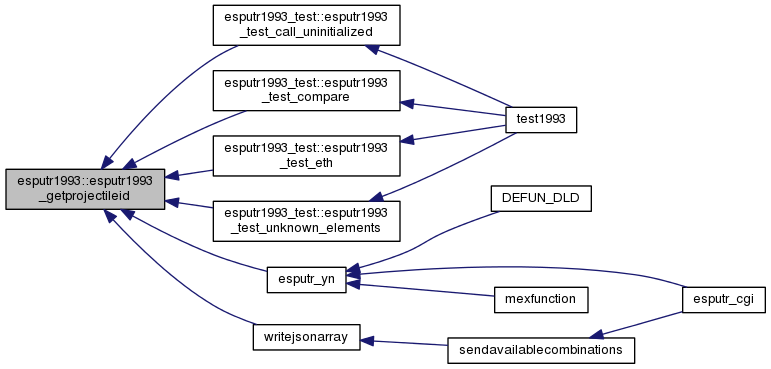

Here is the caller graph for this function:

integer function, public esputr1993::esputr1993_gettargetid	(	character(*), intent(in)	targ,
		integer, intent(out)	err
	)

Return ID of the target for the 1993-model.

The ID index is to be used in function esputr1993_yn

Parameters

[in]	targ	String with the name of the target
[out]	err	Error code

102 : requested target is not found

Definition at line 382 of file esputr1993.f90.

References esputr::esputr_unit, and targets_names.

Referenced by esputr1993_test::esputr1993_test_call_uninitialized(), esputr1993_test::esputr1993_test_compare(), esputr1993_test::esputr1993_test_eth(), esputr1993_test::esputr1993_test_unknown_elements(), esputr_yn(), and writejsonarray().

Here is the caller graph for this function:

real(esputr_dp) function, public esputr1993::esputr1993_yn	(	real(esputr_dp), intent(in)	E0,
		integer, intent(in)	proj_id,
		integer, intent(in)	targ_id,
		integer, intent(out)	err
	)

Calculate sputtering yield for normal incidence with 1993-model for a given incident energy and target-projectile combination.

Same formula is used as in the subroutine SPUTER of EIRENE, see [W. Eckstein et al., Atomic as plasma-material interaction data for fusion, vol. 7, Part B (2001)] Chapter 2, first Equation on Page 18

Parameters

[in]	e0	Incident energy, eV
[in]	proj_id	Projectile ID returned by yesputr1993_getProjectileId
[in]	targ_id	Target ID returned by esputr1993_getTargetId
[out]	err	Error code

Definition at line 417 of file esputr1993.f90.

References esputr::esputr_unit, fitvalues, nprojectiles, and ntargets.

Referenced by esputr1993_test::esputr1993_test_call_uninitialized(), esputr1993_test::esputr1993_test_compare(), esputr1993_test::esputr1993_test_wrong_ids(), and esputr_yn().

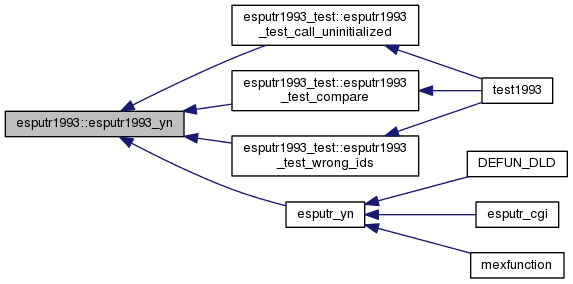

Here is the caller graph for this function:

real(esputr_dp) function, public esputr1993::esputr1993_yth	(	real(esputr_dp), intent(in)	theta,
		integer, intent(out)	err
	)

Angular dependence of sputtering yield in 1993-model for given incident angle.

Yamamura formula with f=2 and theta_opt=75 deg. See [W. Eckstein et al., Atomic as plasma-material interaction data for fusion, vol. 7, Part B (2001)] Chapter 2, first Equation on Page 19. This model was used in the EIRENE subroutine SPUTER. Maximum for cChosen set of parameters is 3.3902

Parameters

[in] theta Angle of incidence, radian

Angle between surface normal and the incident velocity: 0 for normal incidence

Parameters

[out] err Error code

Definition at line 468 of file esputr1993.f90.

References esputr::esputr_pi, esputr::esputr_pi2, and esputr::esputr_unit.

Referenced by esputr1993_test::esputr1993_test_th(), esputr1993_test::esputr1993_test_wrong_angle(), and esputr_yth().

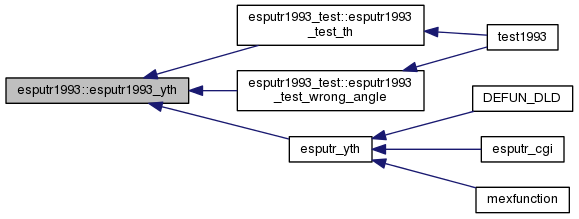

Here is the caller graph for this function:

real(esputr_dp) function, public esputr1993::esputr1993_eth	(	integer, intent(in)	proj_id,
		integer, intent(in)	targ_id,
		integer, intent(out)	err
	)

Return threshold energy for the given projectile-target combination.

Parameters

[in]	proj_id	Projectile ID returned by yesputr1993_getProjectileId
[in]	targ_id	Target ID returned by esputr1993_getTargetId
[out]	err	Error code

Definition at line 505 of file esputr1993.f90.

References esputr::esputr_unit, fitvalues, nprojectiles, and ntargets.

Referenced by esputr1993_test::esputr1993_test_eth(), and writejsonarray().

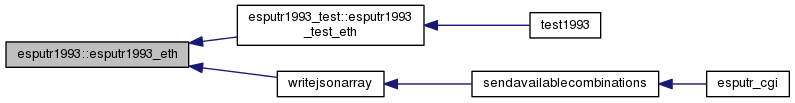

Here is the caller graph for this function:

subroutine, public esputr1993::esputr1993_availablecombinations	(	character(esputr1993_first_col_width), dimension(:,:), intent(inout), allocatable	combinations,
		integer, intent(out)	err
	)

Return the list of available projectile-target combinations.

Parameters

[in,out] combinations (:,1) are the projectiles, (:,2) are the targets

Definition at line 532 of file esputr1993.f90.

References esputr::esputr_unit, nprojectiles, ntargets, projectiles_names, and targets_names.

Referenced by sendavailablecombinations().

Here is the caller graph for this function:

Variable Documentation

integer, parameter, public esputr1993::esputr1993_first_col_width = 11

Width of the first column in the input file.

Definition at line 36 of file esputr1993.f90.

Referenced by esputr1993_init().

integer, save, private esputr1993::nheaderlines

Number of comment lines in the beginning of the input file All lines including the first line which starts with '=' are considered to be comment lines. If there is no line starting with '=', no line is treated as comment.

Definition at line 41 of file esputr1993.f90.

Referenced by esputr1993_init().

integer, parameter, private esputr1993::col_width = 9

Width of the columns in the input file.

Definition at line 43 of file esputr1993.f90.

Referenced by esputr1993_init().

integer, parameter, private esputr1993::lines_per_target = 6

Number of lines for each target in in the input file (excluding blank lines)

Definition at line 45 of file esputr1993.f90.

Referenced by esputr1993_init().

integer, parameter, private esputr1993::nconstants = 3

Number of parameters read from the input file for one target/projectile combination.
