esputr_YTH.F File Reference

Matlab interface for calculation of the angular dependence factor of the sputtering yield. More...

Go to the source code of this file.

Functions/Subroutines
subroutine	mexfunction (nlhs, plhs, nrhs, prhs)
	Matlab interface for calculation of the angular dependence factor of the sputtering yield. More...

Detailed Description

Matlab interface for calculation of the angular dependence factor of the sputtering yield.

Authors

Markus Brenneis Marku.nosp@m.s.Br.nosp@m.ennei.nosp@m.s@un.nosp@m.i-due.nosp@m.ssel.nosp@m.dorf..nosp@m.de, Vladislav Kotov v.kot.nosp@m.ov@f.nosp@m.z-jue.nosp@m.lich.nosp@m..de (contact person)

Definition in file esputr_YTH.F.

Function/Subroutine Documentation

subroutine mexfunction	(	integer	nlhs,
		dimension(*)	plhs,
		integer	nrhs,
		dimension(*)	prhs
	)

Matlab interface for calculation of the angular dependence factor of the sputtering yield.

Note

Matlab keeps the memory per mex function unless clear myMexFun or clear mex is called.

Warning

In Matlab, messages printed by ESPUTR appear only on the console (matlab -nodesktop, not in the Matlab GUI window)

Parameters

nlhs	Number of vectors in the output (left hand side)
nrhs	Number of vectors in the input (right hand side)

Output (left hand side) matrices

Each matrix contains the angular factor as a function of incident angle (rows) and incident energy (columns) for one projectile-target combination

Input (right hand side) vectors

1. Array of incident angles, radian
2. Array of incident energies, eV
3. Array of strings which denote the projectiles
4. Array of strings which denote the targets
5. String which denotes the model ('1993', '2001')
6. Name of the input file (full path) with fitting coefficients

Definition at line 35 of file esputr_YTH.F.

References esputr2001::esputr2001_deallocate(), esputr2001_getavailableenergyrangebyname(), esputr2001::esputr2001_initth(), and esputr_yth().

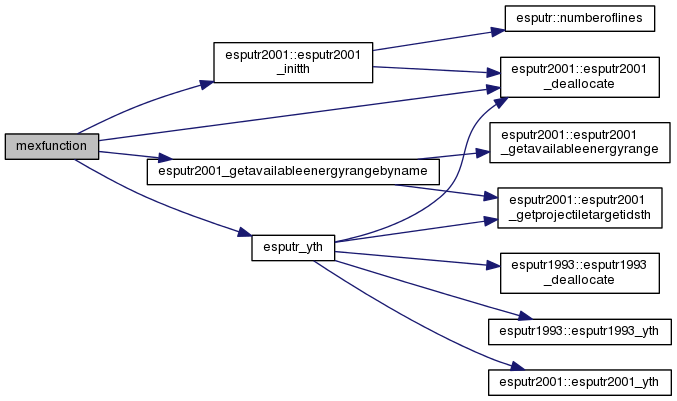

Here is the call graph for this function:
